Description
Functions:
- Dual band VHF UHF standby and full band 50-600 MHz reception
- NOAA Weather Alert
- Frequency counter function
- Cross-zone communication
- Receive FM radio/air
- VOX (voice transmission)
- Built-in high-brightness lens
- 200 memory channels
- Copy wireless frequency from other radios
- Wireless radio playback
- DTMF and 1750 tone
- Automatic/manual emergency notification
- 10 team Scrambler
- Frequency scan/DCS/CTCSS
- CTCC/DCS digital signal
- Rechargeable 1600mAh lithium battery
- Charging base
Frequency range:
- F1: 50.0000-76.0000 MHz (RX only)
- F2: 108.0000-135.9750 MHz (RX only)
- F3: 136.0000-173.9750 MHz (TX and RX both)
- F4: 174.0000-349.9750 MHz (RX only)
- F5: 350.0000-399.9750 MHz (RX only)
- F6: 400.0000-469.9750 MHz (TX and RX both)
- F7: 470.0000-600.0000 MHz (RX only)
- FM radio: 76,000-108,000 MHz
Technical characteristics:
- Number of channels: 200
- Number of FM radios: 20
- Frequency stability: ±1ppm
- Band : 144∽146MHz430∽440MHz
- Size: 115 X 60 X 37.5mm
- Weight: 234g
- Antenna resistance: 50Ω
- Modulation mode: FM: 11KOF3E(12.5KHz),16K0F3E(25KHz)
- Number of NOAA channels: 10
- Battery capacity: 1600 mAh
- Sound power: ≥0.5W
- Sound distortion: ≤10%
- Emission power: ≤4W
- Emission current: ≤1.5A
- Maximum frequency deviation: ≤5KHz(25KHz),≤2.5KHz(12.5KHz)
- Configuration distortion: ≤5%
- Stray power: ≤7.5uW
- Adjacent channel power: 70dB (25KHz) and 60dB (12.5KHz)
- Residual modulation: 40dB
- Waterproof: IP57
- Maximum range: 3km-5km
- Operating temperature: -20℃+60℃
Reference sensitivity:
FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.92975) 123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) - 121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.913975)
Included:

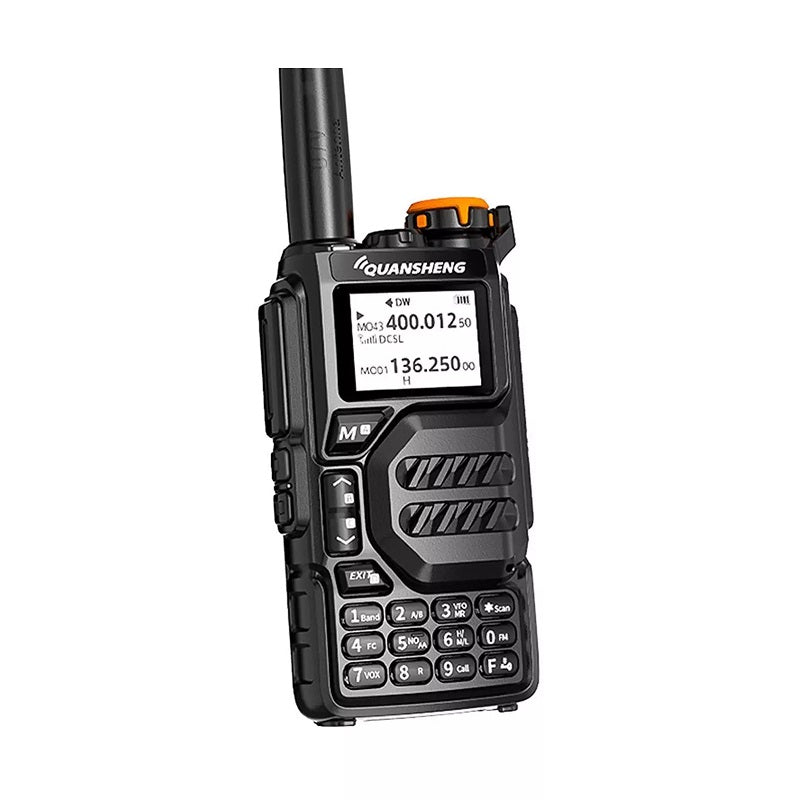

- 1 x Wireless UV-K5
- 1 x 7.2V 1600mah Li-ion battery
- 1 x SMA-Female Dual Band Antenna
- 1 x Belt Clip
- 1 x Manual
- 1 x desktop charger (110V~240V)
- 1 x hand strap
