Description

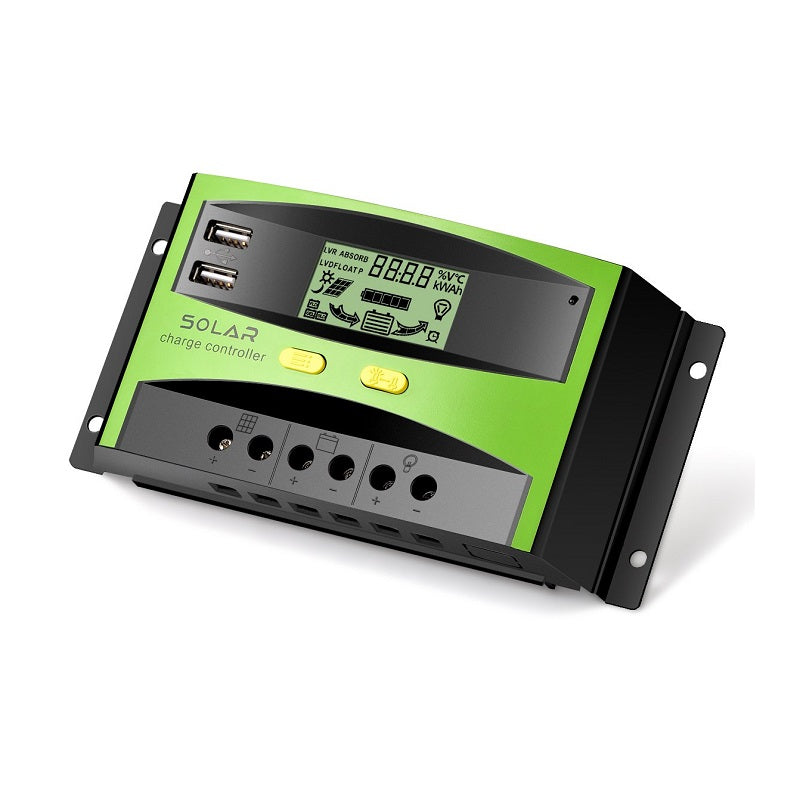

Digital charge controller for photovoltaic panels.
Suitable for 12V or 24V photovoltaic systems with a power of 40A.
Large easy-to-read LCD screen for easy display of information such as: charging current, discharging current and battery voltage every 5 sec.
Automatic system voltage recognition. It has an electronically controlled circuit.
PWM charging technology with the lowest system losses. LD series controller with ISO9001:2008 Accredited CE specifications and certifications
Features:
• LCD screen
• Smart PWM charging function
• Automatic activation of system voltage
• Brief key operation - Brief key operation
• Adjustable charge & discharge parameter
• Adjustable load working modes
• Automatic restart delay after overload
Protections:
• Battery reversed protection
• Battery discharge protection
• Low battery voltage protection
• Overload & short circuit protection
Technical Specifications:
• Rated operating voltage: 12V / 24V
• Rated operating current: 40A
• Solar panel voltage: <50V
• Float charging voltage (adjustable): 13.7V / 27.4V
• Low voltage protection (adjustable): 10.7V / 21.4V
• Low voltage recovery (adjustable): 12.6V / 25.2V
• No load loss: < 30mA
• Loop voltage drop: < 200mA
• Charging mode: PWM mode
• Temperature compensation: -4mV/Cell/℃
• Install maximum cable: 25mm2)
• Operating temperature: -20℃~50℃
• Storage temperature: -30℃~70℃
• Temperature requirement: ≤90%, non-condensing
• Dimensions: 190*108*41.5mm
• Weight: 520g
